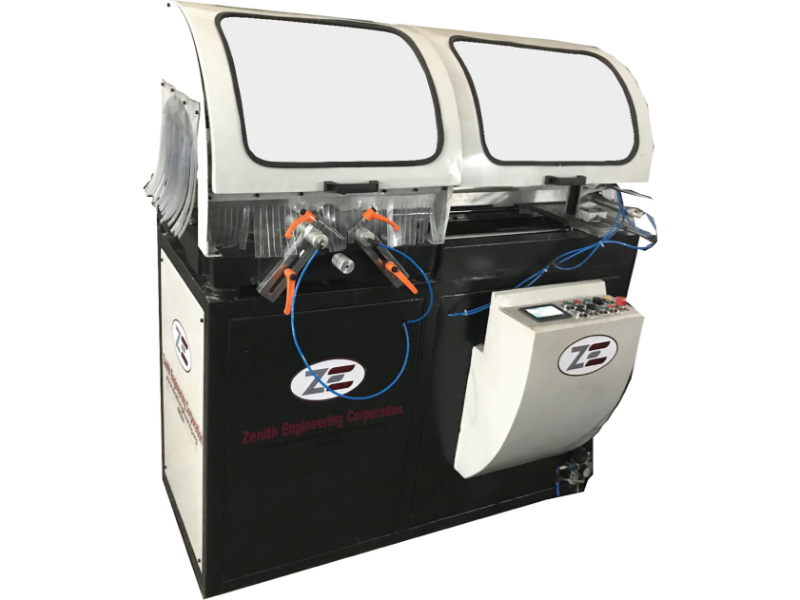

Single Head Upstrocking Machine with Auto feeding System ZUS-16 AF
MACHINE FEATURES
-
- Complete high grade cost iron structure with the head and rotatory base
-
- Machine equipped of Siemens electrical kit for best quality perfor mance
-
- Machine equipped with Italian cylinder and lubricant technology
-
- Comply with branded TATA/SKF bearing with machine
-
- This is ideal machine to cut uneven and odd shaped profile due to 4 clamp position setting
-
- Machine is equipped with the two horizontal and two vertical clamps for optimum grip
-
- Back fance can be moved front and back side from the saw center that enable us to cut wider section
-
- Linear motion on tap fitted roller track that gives accurate and fast setting on profile to cut
-
- Heavy duty machine with 1 year warranty accept cutter
-
- 420mm Carbide Italian saw blade supplied with machine to ensure quality cutting
-
- Machine supply with cutter and tool kit
-
- Wide range of optional accessories available for the machine like roller track with tape fitted or DRO length gauge
-
- Machine provides with SCHINDER PLC, HMI & SERVO motor with the Japanese ball screw movement
-
- Feeding length and the number of cuts be easily fitted with a touch screen
-
- Feeding accuracy is upto ±50 microns
-
- Extra heavy clamp arrangements horizontal and vertical for feeding device for optimum greeting while feeding
| SPECIFICATIONS | |
|---|---|
| Motor Power | 2.2 KW - 3.5 KW |
| Max. Cutter Dia | 420mm |
| Machine Dimension | 700*700*1400mm |
| Air Pressure | 5-7 BAR |
| Gross Weight | 675 kg |
| *We reserve the rights to change the color and design of machines time by time. | |
