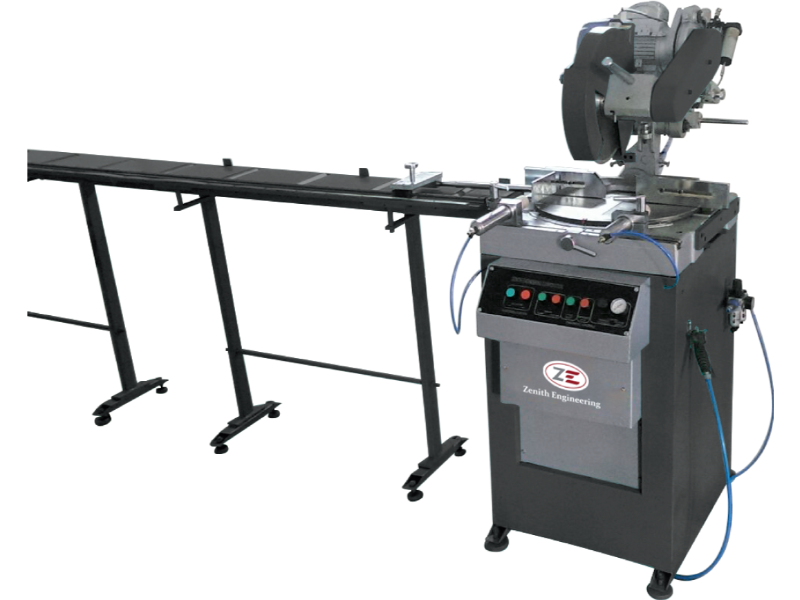

Single Head Automatic Cutting Machine ZVH-14
MACHINE FEATURES
-
- Complete high grade cost iron structure with the head and rotatory base
-
- Machine equipped of Siemens electrical kit for best quality performance
-
- Machine equipped with Italian Cylinder and Lubricant Technology
-
- Comply with branded TATA/SKF bearing with machine
-
- Machine tilting position in degree gives highest cut upto 6 inch in degree and 10 inch in 90 degree in just 350mm saw blade
-
- Back fence support with pneumatic clamping cylinder gives optimum grip and best but free cutting to profiles
-
- Linear motion on tap fitted roller back
-
- Heavy duty machine with 1 year complete warranty accept cutting
-
- Carbide Italian saw blade supplied with machine to ensure quality cutting
-
- Machine supply with two cutter and tool kit
-
- Wide range of optional accessories available for the machine like roller track with tape fitted or DRO length gauge
| SPECIFICATIONS | |
|---|---|
| Motor Power | 1.7 KW - 2.2 KW |
| Max. Cutter Dia | 350mm |
| Machine Dimension | 850*850*1200 mm |
| Air Pressure | 5-7 BAR |
| Gross Weight | 345 kg |
| *We reserve the rights to change the color and design of machines time by time. | |
